Automated Hyperparameter Selection¶
This tutorial demonstrates how to automatically select optimal Gaussian Process hyperparameters for your surrogate model by testing multiple configurations and choosing the one with the best test set performance.
Why This Matters¶
GP surrogate model performance is highly sensitive to:
Kernel choice (ExpSquared, Matern32, Matern52, etc.)
Data scaling (no scaling, MinMax, StandardScaler)
Other hyperparameters (white noise, amplitude, length scales)
Rather than manually tuning these, we can systematically test combinations and select the best configuration based on test set mean squared error (MSE).
Step 1: Import Required Libraries¶
Import alabi and its submodules along with standard scientific computing libraries.
[10]:
import alabi
import alabi.utility as ut
import alabi.benchmarks as bm
from alabi.core import SurrogateModel
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from sklearn import preprocessing
from itertools import product
from matplotlib import rcParams
# rcParams['font.family'] = 'serif'
# rcParams['text.usetex'] = True
random_state = 101
np.random.seed(random_state)
Step 2: Define Problem and Base Configuration¶
Set up the benchmark problem (eggbox function) and define a base configuration for GP hyperparameters. These settings will be partially overridden when we test different combinations.
Key parameters:
ninit: Number of initial training pointsniter: Number of active learning iterationsncore: Number of CPU cores for parallel evaluation (use 1 if experiencing multiprocessing issues)white_noise: Log-scale white noise parameter (increase if you see positive definiteness errors)
[11]:
ninit = 50
niter = 100
basedir = "demo"
kernel = "ExpSquaredKernel"
benchmark = "rosenbrock"
savedir = f"{basedir}/{benchmark}/{kernel}/{ninit}_{niter}"
gp_kwargs = {"kernel": kernel,
"fit_amp": True,
"fit_mean": True,
"fit_white_noise": False,
"white_noise": -12,
"gp_opt_method": "l-bfgs-b",
"hyperopt_method": "cv",
"cv_folds": 8,
"gp_amp_rng": [-1,1],
"gp_scale_rng": [-2,2],
"theta_scaler": alabi.no_scaler,
"y_scaler": alabi.no_scaler}
sm = SurrogateModel(lnlike_fn=bm.eggbox["fn"],
bounds=bm.eggbox["bounds"],
savedir=savedir,
ncore=8,
pool_method="forkserver",
verbose=True,
random_state=random_state)
sm.init_samples(ntrain=ninit, ntest=1000, sampler="lhs")
100%|██████████| 50/50 [00:01<00:00, 41.58it/s]
100%|██████████| 1000/1000 [00:01<00:00, 883.55it/s]
Step 3: Create Hyperparameter Grid¶
Generate all combinations of the hyperparameters we want to test:
Kernels: Different covariance functions capture different smoothness assumptions
Theta scaler: How to scale input parameters
Y scaler: How to scale output values
The dict_to_combinations function creates a Cartesian product of all options.
[12]:
def dict_to_combinations(options_dict):
keys = options_dict.keys()
values = options_dict.values()
return [dict(zip(keys, combo)) for combo in product(*values)]
def combinations_to_dict(combinations):
result = {key: [] for key in combinations[0].keys()}
for combo in combinations:
for key, value in combo.items():
result[key].append(value)
return result
gp_kwarg_options = {"kernel": ["ExpSquaredKernel", "Matern32Kernel", "Matern52Kernel"],
"theta_scaler": [ut.no_scaler, preprocessing.MinMaxScaler(), preprocessing.StandardScaler()],
"y_scaler": [ut.no_scaler, preprocessing.MinMaxScaler(), preprocessing.StandardScaler()]}
variable_settings = dict_to_combinations(gp_kwarg_options)
print(len(variable_settings), "combinations to test")
# get a list of dictionaries with all combinations of settings, where each dictionary is a copy of the original gp_kwargs with the variable settings updated
setting_combos = []
for settings in variable_settings:
new_settings = gp_kwargs.copy()
for key in settings.keys():
new_settings[key] = settings[key]
setting_combos.append(new_settings)
27 combinations to test
Step 4: Test All Hyperparameter Combinations¶
Loop through all combinations and fit a GP for each. The init_gp method returns the test set MSE, which we use to evaluate performance.
Note: This can take several minutes depending on the number of combinations and problem dimensionality. Use try/except to handle configurations that fail to converge.
[ ]:
# docs: collapse output
for ii in range(len(setting_combos)):
try:
test_mse = sm.init_gp(**setting_combos[ii], overwrite=True)
except:
test_mse = np.nan
setting_combos[ii]["test_mse"] = test_mse
Step 5: Analyze Results¶
Convert results to a pandas DataFrame and inspect the top-performing configurations. Lower test MSE indicates better generalization performance.
[14]:
results = pd.DataFrame(data=combinations_to_dict(setting_combos))
top_fits = results.sort_values("test_mse").head(5)
top_fits
[14]:
| kernel | fit_amp | fit_mean | fit_white_noise | white_noise | gp_opt_method | hyperopt_method | cv_folds | gp_amp_rng | gp_scale_rng | theta_scaler | y_scaler | test_mse | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7 | ExpSquaredKernel | True | True | False | -12 | l-bfgs-b | cv | 8 | [-1, 1] | [-2, 2] | StandardScaler() | MinMaxScaler() | 1993.447717 |
| 8 | ExpSquaredKernel | True | True | False | -12 | l-bfgs-b | cv | 8 | [-1, 1] | [-2, 2] | StandardScaler() | StandardScaler() | 1998.471961 |
| 24 | Matern52Kernel | True | True | False | -12 | l-bfgs-b | cv | 8 | [-1, 1] | [-2, 2] | StandardScaler() | no_scaler | 2029.055811 |
| 6 | ExpSquaredKernel | True | True | False | -12 | l-bfgs-b | cv | 8 | [-1, 1] | [-2, 2] | StandardScaler() | no_scaler | 2066.363090 |
| 11 | Matern32Kernel | True | True | False | -12 | l-bfgs-b | cv | 8 | [-1, 1] | [-2, 2] | no_scaler | StandardScaler() | 2067.461220 |
Step 6: Extract Best Configuration¶
Identify the hyperparameter configuration with the lowest test MSE. This will be used for active learning.
[15]:
best_gp_results = results[results["test_mse"] == results["test_mse"].min()]
best_gp_results
[15]:
| kernel | fit_amp | fit_mean | fit_white_noise | white_noise | gp_opt_method | hyperopt_method | cv_folds | gp_amp_rng | gp_scale_rng | theta_scaler | y_scaler | test_mse | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7 | ExpSquaredKernel | True | True | False | -12 | l-bfgs-b | cv | 8 | [-1, 1] | [-2, 2] | StandardScaler() | MinMaxScaler() | 1993.447717 |
Step 7: Run Active Learning¶
Use the optimal GP configuration for active learning. The BAPE (Bayesian Active Posterior Estimation) algorithm iteratively selects new training points to improve the surrogate model.
Key active learning parameters:
algorithm: Acquisition function (“bape”, “agp”, or “jones”)gp_opt_freq: How often to reoptimize GP hyperparameters during trainingobj_opt_method: Optimization method for acquisition functionnopt: Number of optimization restarts for acquisition function
[ ]:
# docs: collapse output
best_gp_kwargs = best_gp_results[gp_kwargs.keys()].to_dict(orient="records")[0]
al_kwargs = {"algorithm": "bape",
"gp_opt_freq": 20,
"obj_opt_method": "nelder-mead",
"nopt": 6}
sm.init_gp(**best_gp_kwargs, overwrite=True)
sm.active_train(niter=200, **al_kwargs)

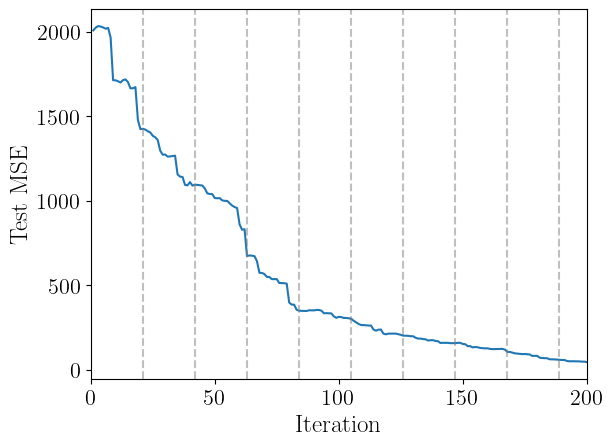

Step 8: Visualize Training Progress¶
Plot the test set MSE over active learning iterations. A decreasing trend indicates the surrogate model is improving. We can also highlight which iterations the GP hyperparameters are re-optimized (vertical gray lines).
[17]:
plt.plot(sm.training_results["iteration"], sm.training_results["test_mse"])
for ii in range(0, sm.nactive, sm.gp_opt_freq+1):
plt.axvline(ii, color="gray", linestyle="--", alpha=0.5)
plt.xlabel("Iteration", fontsize=18)
plt.ylabel("Test MSE", fontsize=18)
plt.xlim(0, sm.nactive)
plt.show()

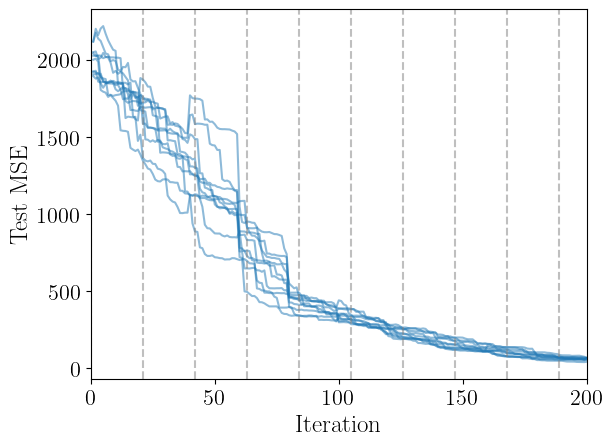

How much does random variance affect the performance?
Let’s do a trial where we do 10 attempts with the same hyperparameter configuration and track the test mse:
[ ]:
# docs: collapse output
best_gp_kwargs = best_gp_results[gp_kwargs.keys()].to_dict(orient="records")[0]
test_mse_trials = []
for ii in range(10):
al_kwargs = {"algorithm": "bape",
"gp_opt_freq": 20,
"obj_opt_method": "nelder-mead",
"nopt": 6}
sm.init_gp(**best_gp_kwargs, overwrite=True)
sm.active_train(niter=200, **al_kwargs)
test_mse_trials.append(sm.training_results["test_mse"])
[26]:
for test_mse in test_mse_trials:
plt.plot(sm.training_results["iteration"], test_mse, color="C0", alpha=0.5)
for ii in range(0, sm.nactive, sm.gp_opt_freq+1):
plt.axvline(ii, color="gray", linestyle="--", alpha=0.5)
plt.xlabel("Iteration", fontsize=18)
plt.ylabel("Test MSE", fontsize=18)
plt.xlim(0, sm.nactive)
plt.show()

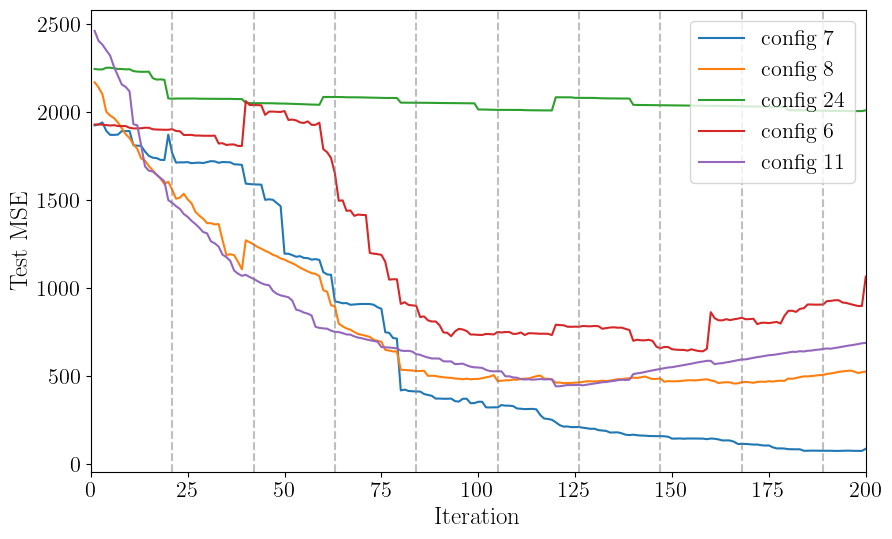

How do the other top initial fits perform during active learning?
[ ]:
# docs: collapse output
al_kwargs = {"algorithm": "bape",
"gp_opt_freq": 20,
"obj_opt_method": "nelder-mead",
"nopt": 6}
mse_results = {}
for idx in top_fits.index:
gp_kwargs_idx = top_fits[top_fits.index == idx][gp_kwargs.keys()].to_dict(orient="records")[0]
sm.init_gp(**gp_kwargs_idx, overwrite=True)
sm.active_train(niter=200, **al_kwargs)
mse_results[idx] = sm.training_results["test_mse"]
[24]:
plt.figure(figsize=(10,6))
for idx in top_fits.index:
plt.plot(sm.training_results["iteration"], mse_results[idx], label=f"config {idx}")
for ii in range(0, sm.nactive, sm.gp_opt_freq+1):
plt.axvline(ii, color="gray", linestyle="--", alpha=0.5)
plt.legend(loc="upper right", fontsize=16)
plt.xlabel("Iteration", fontsize=18)
plt.ylabel("Test MSE", fontsize=18)
plt.xlim(0, sm.nactive)
plt.show()
top_fits
[24]:
| kernel | fit_amp | fit_mean | fit_white_noise | white_noise | gp_opt_method | hyperopt_method | cv_folds | gp_amp_rng | gp_scale_rng | theta_scaler | y_scaler | test_mse | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7 | ExpSquaredKernel | True | True | False | -12 | l-bfgs-b | cv | 8 | [-1, 1] | [-2, 2] | StandardScaler() | MinMaxScaler() | 1993.447717 |
| 8 | ExpSquaredKernel | True | True | False | -12 | l-bfgs-b | cv | 8 | [-1, 1] | [-2, 2] | StandardScaler() | StandardScaler() | 1998.471961 |
| 24 | Matern52Kernel | True | True | False | -12 | l-bfgs-b | cv | 8 | [-1, 1] | [-2, 2] | StandardScaler() | no_scaler | 2029.055811 |
| 6 | ExpSquaredKernel | True | True | False | -12 | l-bfgs-b | cv | 8 | [-1, 1] | [-2, 2] | StandardScaler() | no_scaler | 2066.363090 |
| 11 | Matern32Kernel | True | True | False | -12 | l-bfgs-b | cv | 8 | [-1, 1] | [-2, 2] | no_scaler | StandardScaler() | 2067.461220 |
Here we see that the configuration for best initial fit isn’t always necessarily the best fit after running active learning, but it is not a bad place to start. In practice, if the test error is not converging, it may be an indication to try a different configuration of hyperparameters.
[ ]:
Next Steps¶
Now that you have an optimized surrogate model, you can:
Run posterior sampling with
sm.run_emcee()orsm.run_dynesty()Visualize the surrogate using
alabi.visualizationtoolsTest on new problems by changing the benchmark function
Expand the hyperparameter grid to include more options like:
Different
white_noisevaluesDifferent
cv_foldssettingsDifferent data scaling functions for
theta_scalerory_scaler
